Mercedes Benz 190E Double Adjustable Race Shocks/Struts

2513.84
external-usa-thanksgiving-dreamcreateicons-outline-color-dreamcreateicons-4
PROUDLY MADE IN THE USA
By Ground Control Suspension Systems
ⓘ Helper Springs are 4" or 8" tall springs with a very low spring rate. (They can be fully compressed with just your index finger and thumb.) Their primary purpose is to keep tension on the main spring at full droop. This prevents the main spring from coming loose & settling improperly upon significant weight transfer to the opposite side of the vehicle (lifting the corner in question off the ground,) when jumping the vehicle, during aggressive or track oriented driving, or off road applications. Another benefit worth noting is their ability to keep everything 'in place' when lowering the vehicle with a hydraulic jack. Without them, you will need to make sure the main springs settle correctly into place, as well as the top hats, etc.

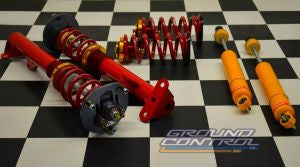

THIS KIT INCLUDES THE FOLLOWING:


2 SHORT Koni Double Adjustable struts in Ground Control shortened strut housings.

Complete Shortened Front Strut Housing - Machined from seamless DOM 1026 steel alloy tubing. Heavy-duty spindle bracket welded on. Our design is much stronger and more rigid than any of the aftermarket housings that are actually modified stock housings, with skip-welded gussets.


Koni Race Double Adjustable Front Strut - Struts are externally adjustable from underneath the hood. This strut is prepared for coil over use, and eliminates machining of critical suspension components.


Ground Control Threaded Sleeves - This system is designed to eliminate stress risers caused by machining notches into the strut housing. Unlike other companies that claim superiority by cutting threads into a critical component of the suspension, Ground Control uses engineering common sense to maximize the strength of the suspension.


Ground Control Adjustable Spring Perch - A unique design, which uses an Allen head bolt to clamp the single threaded perch into the correct position. No secondary pieces are needed to "jam" the threaded perch into position.

2 SHORT Koni single adjustable rear shocks

1 Pair front Camber Plates

4 Eibach ERS springs, any racing spring rate

4 Ground Control bump stops (made in Germany)

2 Rear ride height adjusters.

* Suspension is shipped completely assembled and preadjusted*
Please note: These kits are intentionally equipped with a rigid camber/caster plate design for on-track applications. Because of this feature, some noise may be transmitted from strut shafts, sway bar links, tires, brakes, springs, wheel bearings, road surfaces, etc.
