Camber/Caster Plate - '86-'91 RX7 (Pair)
Camber/Caster Plate - '86-'91 RX7 (Pair)
$384.00

Camber/Caster Plate - '86-'91 RX7 (Pair)

CCP7II-1
external-usa-thanksgiving-dreamcreateicons-outline-color-dreamcreateicons-4
PROUDLY MADE IN THE USA
By Ground Control Suspension Systems

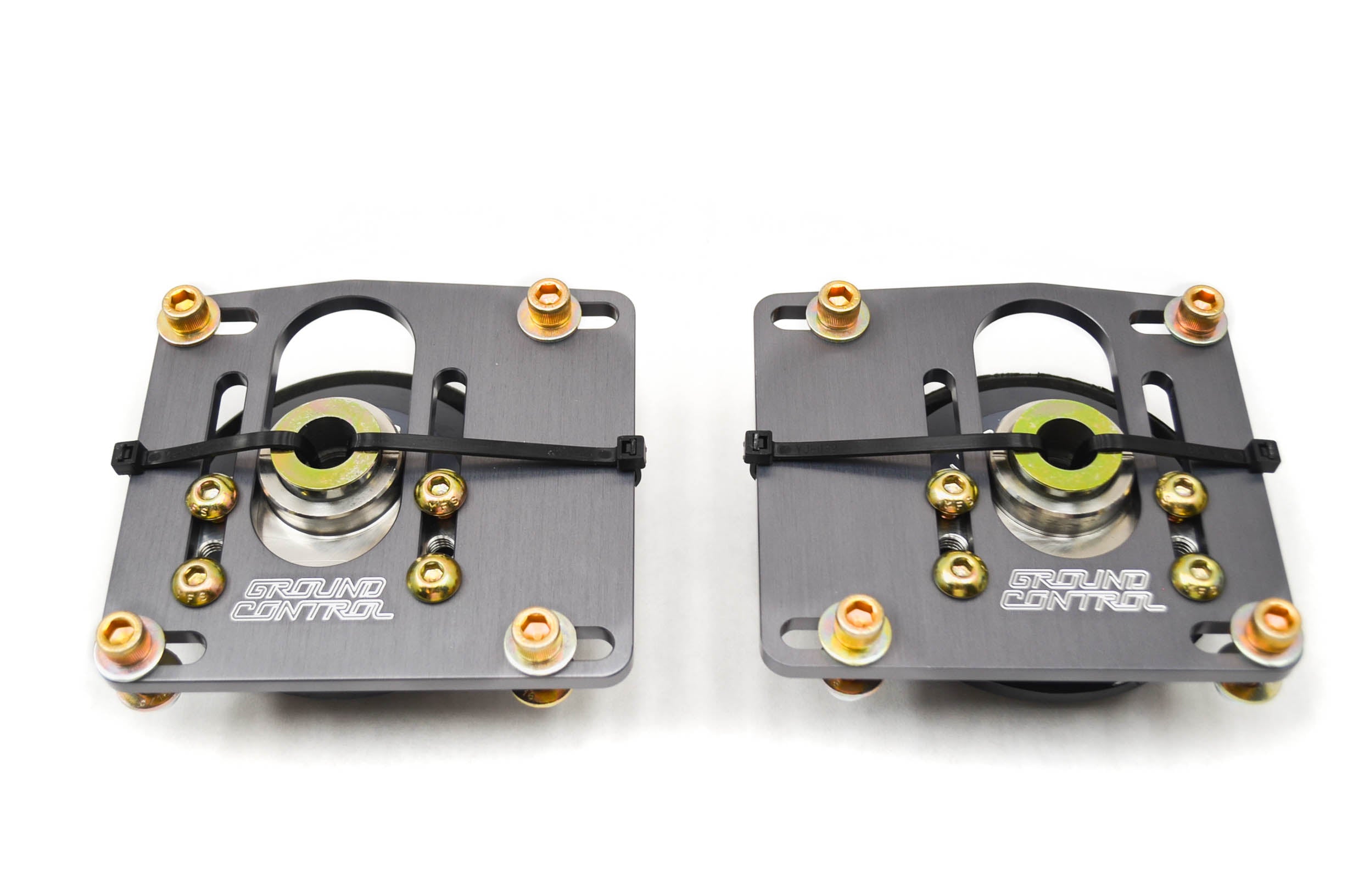

Ground Control Racing Camber / Caster Plates
This is a COMPLETE kit, including spring perches.
Be careful of incomplete kits from Taiwan (Made in Japan). More camber adjustment than stock, caster adjustment, aircraft bearings. Every component is anodized or plated, including fasteners. Adds 1.25 inches extra travel to avoid excessive bottoming out, this is a very well engineered product.
Camber and caster are separately adjustable by sliding the mounts, without removing any components from the car. The priority of this design is to allow fast, repeatable alignment changes at the track.
The Ground Control camber plates feature two sets of bearings, a proprietary bearing, made to our specs by Aurora in the USA, which allows for articulation of the shock shaft. This spherical bearing is very understressed, as the Ground Control design does NOT support the weight of the car on the spherical bearing. Instead, the weight of the car is supported by a completely separate articulating needle bearing, which is also manufactured for Ground Control in the USA.
Please note that STREET struts, (oem style fitment), will probably need slight machining to the strut shaft.
Race struts, and street struts purchased from Ground Control do not need machining.
